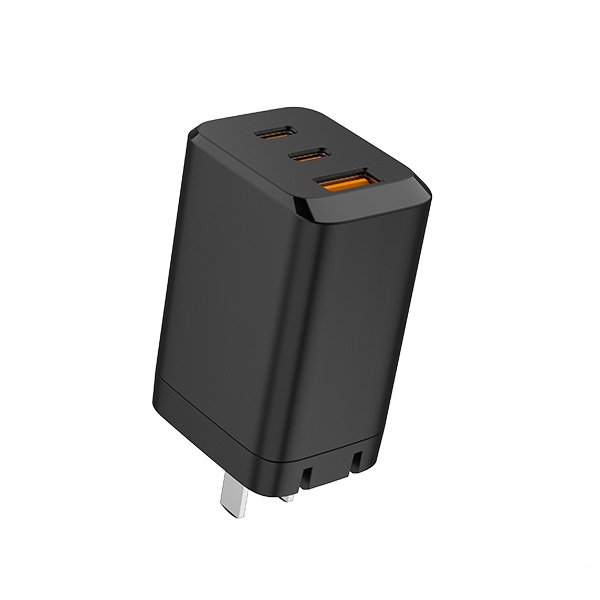

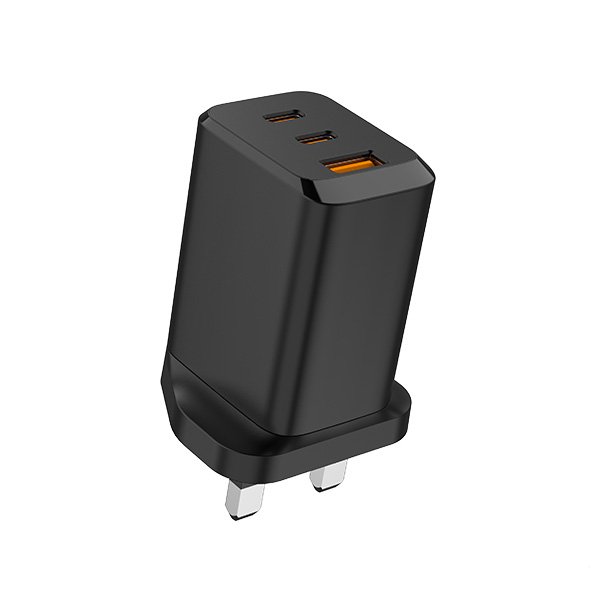

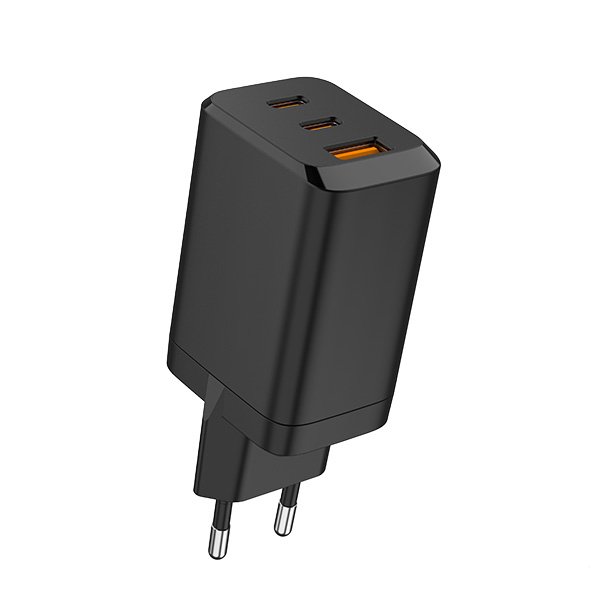

    WG6553 65W GaN Home Charger

    Wall charger

    Color:
    Product description
    Input:100-240V~50/60Hz 1.5A C1:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65W Max) PPS:3.3-20V/3.25A C2:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65W Max) PPS:3.3-20V/3.25A A:4.5V/5A，5V/4.5,9V/3A，12V/2.5A,20 /1.5A（30W Max） C1+C2:45W+20W C1+A:45W+18W C2+A:15W C1+C2+A:45W+15W Size:41.5*32.5*62mm
    Details

    Specifications

    Parameter


    Input:100-240V~50/60Hz 1.5A
    C1:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65W Max)
    PPS:3.3-20V/3.25A
    C2:5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A(65W Max)
    PPS:3.3-20V/3.25A
    A:4.5V/5A，5V/4.5,9V/3A，12V/2.5A,20 /1.5A（30W Max）
    C1+C2:45W+20W
    C1+A:45W+18W
    C2+A:15W
    C1+C2+A:45W+15W
    Size:41.5*32.5*62mm
